Antennas

Models LP-1018BA

30-1100 MHz Log Periodic Antenna Systems

LP-1018BA
Frequency Range 30-1100 MHz
Polarization Horizontal or Vertical
Gain 8.0 dB
VSWR, Nominal 2:1
Input Impedance 50 ohms
Antenna Input Connector Type ā€œNā€ Female
Recommended Feedline RG-213/u for runs of 50 feet or less

Details

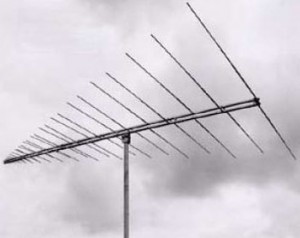

LP_1018BA_web_picThe Model LP-1018BA log periodic dipole antenna has been designed for transmission or reception in either oriented position ā€“ providing a vertical or horizontal polarization. Applications for this antenna include point to point, ground to air, surveillance, etc. The broadband width of 30 through 1100 MHz, together with its high gain of 8.0 dB, and high front to back ratio of 15 dB, yield an antenna of infinite possibilities and applications.
