Model LP-1112MR
4-30 MHz Transportable Log Periodic Antenna System
LP-1112MR | |
Frequency Range (MHz) | 4-30 |
Power Handling Capability (in kW) PEP/Avg. | 10/5 |
Polarization | Horizontal |
Cross Polarization (in dB, down) | 20 |
Forward Gain over Avg. Soil Conditions (in dBi) | 9 dB min. from 4-6 MHz |
12 dB min. from 6-30 MHz | |
Nominal VSWR (with respect to 50 ohms) | 2.5:1 |
Input Impedance (in ohms) | 50 |
Input Connector | HG-231/ U |
Azimuth Half Power Beam Width Avg. | 70° |
Vertical Angle of Max. Radiation | 4 MHz/80°- 30 MHz/8° |
Details

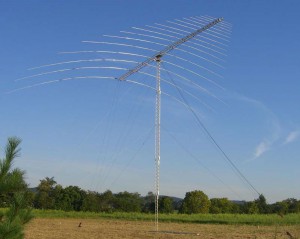

Model LP-1112MR is a lightweight transportable and rotatable log periodic antenna system covering the frequency range of 4 through 30 MHz. It is designed for temporary or permanent installation with minimum deployment time. This unique antenna incorporates an extremely small size considering the frequency coverage of 4 through 30 MHz. The antenna dimensions are only 87 by 62 feet with a tower height of 60 feet. The net weight of the system uncrated is 2,000 pounds. Rotation is accomplished through the use of a mechanical stop and halyard device, eliminating the necessity for electric power of any kind during system erection and operation. Installation and erection can be performed by a crew of six men in less than four hours. All installation tools and fixtures are included in the antenna kit.
